Hello there! @lemony-cricket here. Last week in Encryption Pt. 2, we learned what stream ciphers _were_. This time, we’re going to take a closer look at a specific algorithm called **Salsa20** in order to understand how the keystream is generated from the key.

^{Rocket graphic extracted from this CC0 image from OpenClipart-Vectors on Pixabay.}

# Retrospective

**Unfortunately, participation was down last week.** Thank you to @eonwarped for participating in the interactive activity! I’m not sure if the message was *particularly malicious*, but hey, Bob sure is **really freakin’ confused right now.**

**In an attempt to increase participation,** this post will be the last in the series published on a Monday. From now on, I will be trying to post these on Friday or Saturday.

**Also, it has come to my attention** that my fancy lettering for newly-defined terms isn’t showing up on some devices (particularly mobile phones with terrible Unicode support). That’s unfortunate… so I’ll be switching to ** bold italics**, which are not

*nearly*as fun. But enough about the series, let’s talk about the crypto!

_{By Sissssou on Wikimedia Commons. CC BY-SA 3.0}

# The Salsa20 quarter-round

^{“rounds?” you mean like in boxing?}

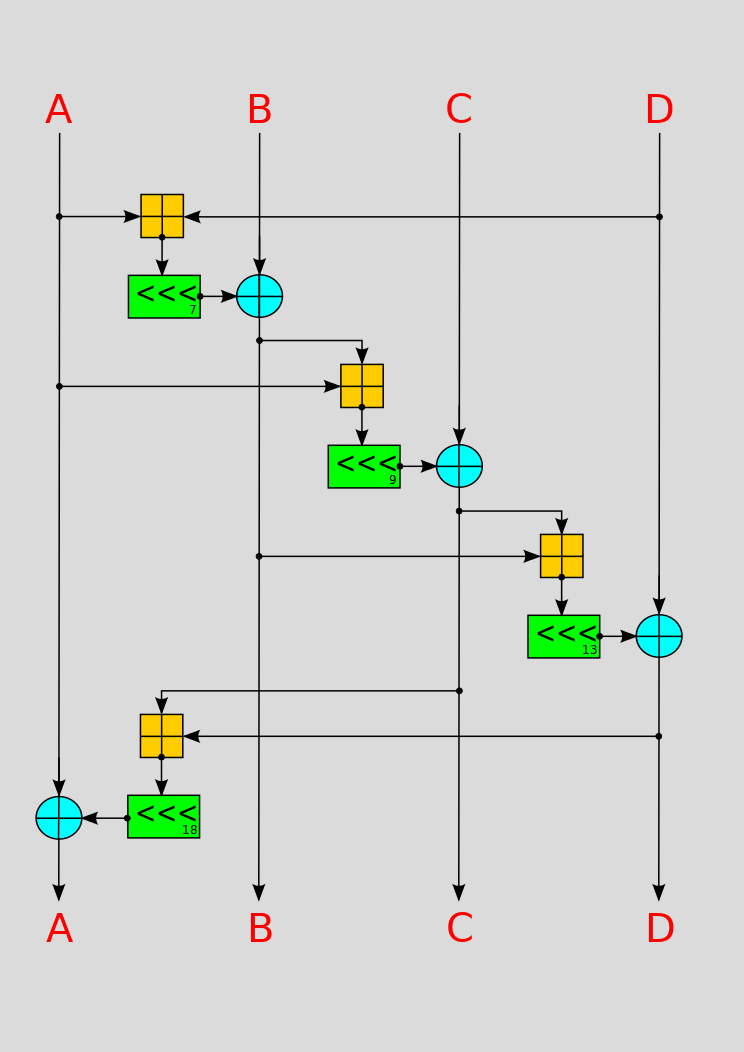

**At the heart of many cryptographic algorithms** lies the concept of the *round*^{d1}. A round is like an algorithm within the algorithm; a sub-routine which is run many times to arrive at a final result. Salsa20’s round function is actually *itself* made up of four **quarter-rounds**; the diagram to the right is a visualisation of the Salsa20 quarter-round function.

**Huh? What are all those symbols?** Well, there are three main operations in play. The orange crossed square represents addition *modulo*^{d2} 2^{31}. The blue crossed circle represents the *bitwise*^{d3} exclusive-OR (XOR) operation (we learned the definition of XOR in the previous installment. Finally, the orange boxes with the `<<<`

symbol inside indicate a leftward *circular shift*^{d4} of the specified number of bits (either 7, 9, 13, or 18 as shown in the diagram, from top to bottom).

**The lines represent input and output.**. The quarter-round function operates on four 32-bit values at a time; A, B, C, and D. These inputs are taken from the cipher's current *state*^{d5}.

# Salsa20's internal state

^{hopefully, this will all start to make some sense soon.}

**The quarter-rounds need data to operate on.** That data is the current **state** of the cipher. For Salsa20, the state is a 4x4 grid of 32-bit values. Every time a quarter-round is executed, the existing data is overwritten with the newly generated output data. By now you're probably wondering... **where is my key in all of this?** We're about to find out.

`expa` |
key_{0} |
key_{1} |
key_{2} |

key_{3} |
`nd 3` |
nonce_{0} |
nonce_{1} |

position_{0} |
position_{1} |
`2-by` |
key_{4} |

key_{5} |
key_{6} |
key_{7} |
`te k` |

**To the left** is a representation of the initial state of the ChaCha20 cipher. The subscript numbers indicate the N+1^{th} 32 bits of that value. For example, "key_{0}" indicates the first 32 bits of the key. The parameters used for the four quarter-rounds alternates from one round to another.

Specifically, there are two possible distributions of the quarter-rounds:

## Odd

```
A | D | C | B
| | |
B | A | D | C
| | |
C | B | A | D
| | |
D | C | B | A
```

**For odd-numbered rounds** (including the first one, since the round numbering starts at 1), the four quarter-rounds each manipulate one of the state's columns.

## Even

```
A B C D
- - - - -
D A B C
- - - - -
C D A B
- - - - -
B C D A
```

**For even-numbered rounds**, the above ordering is used instead, with the rows being manipulated rather than the columns.

# Generating the keystream

^{tying it all together}

**Salsa20's keystream is generated 512 bits at a time.** These 512-bit segments are called **blocks**. In Salsa20, each block starts out as the initial state shown above, then 20 rounds are performed on that state. The initial state has three variable parameters: a 256-bit key, a 64-bit *nonce*^{d6}, and a 64-bit position counter (always starts at zero with the first block, and counts upward with each block).

**After the initial state is built from the key and nonce,** 20 rounds are run, one after another, on the state. At the end, what you have left in the state after those 20 rounds is 512 bits of your keystream.

# Interactive exercise

^{You should have paper and something to write with for this portion.}

**Let's run through a single round of a modified version of Salsa20**. The rules of our modified version are as follows:

- All 32-bit values are 4-bit values instead
- Addition is modulo 2
^{4}instead of 2^{32} - All circular shift operations are removed.
- All rounds are "odd-numbered."

**The first person(s) to respond may use the following initial state**. If you get here and someone else has already participated, you should use *their* output instead of this one, and reply directly to their comment. Let's have some fun with this!

```
1000 1101 1011 1011
0011 1110 0101 1001
0110 1010 0100 1111
0011 1101 1010 0100
```

**Make sure to ask questions** if you get stuck! 🍋

# Definitions

^{From my personal knowledge and experience unless otherwise noted.}

**round**: a subroutine within a cryptographic algorithm which is repeated over and over, or a single iteration of this subroutine.**modulo**: the remainder after a division by the specified divisor. Used to create numerical systems that "wrap around." For example, 1 + 1 modulo 2 is 0.**bitwise**: describes an operation which operates on individual bits of a binary value.**circular shift**: a bitwise operation which shifts each bit in the specified direction, except for the last bit on that end, which is moved to the other side.**state**: a body of data which persists between rounds of a cryptographic function.**nonce**: a**n**umber meant to be used along with a key, but only**once**. The nonce should never be re-used with the same key again.

# References

https://en.wikipedia.org/wiki/Salsa20

https://cr.yp.to/snuffle/salsafamily-20071225.pdf
